【k8s APIServer 源码阅读（一）】-对象缓存

Cacher结构

cacher的结构如下，已将注释翻译成了中文，关键的内容有

incoming chan watchCacheEvent：事件分发的管道

这里事件的结构如下：

// watchCacheEvent is a single "watch event" that is send to users of
// watchCache. Additionally to a typical "watch.Event" it contains
// the previous value of the object to enable proper filtering in the
// upper layers.
type watchCacheEvent struct {
    Type            watch.EventType
    Object          runtime.Object
    ObjLabels       labels.Set
    ObjFields       fields.Set
    PrevObject      runtime.Object
    PrevObjLabels   labels.Set
    PrevObjFields   fields.Set
    Key             string
    ResourceVersion uint64
    RecordTime      time.Time
}

// EventType defines the possible types of events.
type EventType string

const (
    Added    EventType = "ADDED"
    Modified EventType = "MODIFIED"
    Deleted  EventType = "DELETED"
    Bookmark EventType = "BOOKMARK"
    Error    EventType = "ERROR"
)

resourcePrefix string：存储API资源的路径前缀（如/api/v1/pods或/apis/apps/v1/deployments），确保不同资源类型的缓存相互独立
storage storage.Interface：对存储接口的抽象，该接口由具体存储实现（如etcd3）提供，上层组件（如Cacher）通过此接口与存储交互：
- Cacher使用Watch方法监听底层存储变化
- API服务器通过Get/GetList满足LIST请求
- 控制器通过GuaranteedUpdate实现资源的安全更新
watchCache *watchCache：一个维护了当前kind的所有的资源变动事件的滑动窗口
reflector *cache.Reflector：回调函数，list并watch etcd 并将事件和资源存到watchCache这个滑动窗口中
versioner storage.Versioner：处理资源的version相关信息
watchersBuffer []*cacheWatcher：所有对该资源有watch需求的连接

// Cacher负责为给定资源提供WATCH和LIST请求服务
// 并基于底层存储内容在后台更新其缓存。
// Cacher实现了storage.Interface（尽管大多数调用只是委托给底层存储）
type Cacher struct {
        // HighWaterMarks用于性能调试
        // 重要：由于HighWaterMark使用sync/atomic，它必须位于结构体顶部，以解决32位平台上的bug
        // 参见：https://golang.org/pkg/sync/atomic/了解更多信息
        incomingHWM storage.HighWaterMark
        // 应分发给观察者的传入事件
        incoming chan watchCacheEvent

        resourcePrefix string

        sync.RWMutex

        // 在访问缓存器的缓存之前，等待ready状态变为ok
        // 这对于防止用户访问未初始化或正在重新填充的结构是必要的
        // 当缓存器暂停或停止时，ready需要设置为false
        // 当初始化后缓存器准备好使用时，ready需要设置为true
        ready *ready

        // 底层storage.Interface
        storage storage.Interface

        // 底层缓存中对象的预期类型
        objectType reflect.Type
        // 用于区分*unstructured.Unstructured（自定义资源定义）
groupResource schema.GroupResource

        // 对象最近变更的“滑动窗口”和当前状态
        watchCache *watchCache
        reflector *cache.Reflector

        // Versioner用于处理资源版本
        versioner storage.Versioner

        // newFunc是创建新空对象的函数，用于存储Type类型的对象
        newFunc func() runtime.Object

        // newListFunc是创建新空列表用于存储Type类型对象
        newListFunc func() runtime.Object

        // indexedTrigger用于优化需要处理传入事件的观察者数量
        indexedTrigger *indexedTriggerFunc
        // watchers将观察者感兴趣的触发函数值映射到观察者
        watcherIdx int
        watchers indexedWatchers

        // 定义了分发事件时可用于等待未就绪观察者
        // 然后关闭它们的时间预算
        dispatchTimeoutBudget timeBudget

        // 处理优雅终止
        stopLock sync.RWMutex
        stopped bool
        stopCh chan struct{}
        stopWg sync.WaitGroup

        clock clock.Clock
        // timer用于避免底层观察者中不必要的分配
        timer *time.Timer

        // dispatching确定当前是否有任何事件正在分发中
        dispatching bool
        // watchersBuffer是当前可能对当前分发事件感兴趣的观察者列表
        watchersBuffer []*cacheWatcher
        // blockedWatchers是缓冲区当前已满的观察者列表
        blockedWatchers []*cacheWatcher
        // watchersToStop当前分发期间应该停止但推迟到
        // 当前事件分发结束才停止以避免与观察者关闭通道竞争
        watchersToStop []*cacheWatcher
        // 维护超时队列以在观察者超时前发送书签事件
        // 注意：访问此字段时必须受Cacher.lock保护
        bookmarkWatchers *watcherBookmarkTimeBuckets
        // expiredBookmarkWatchers是已过期并需要安排下一个书签事件
        expiredBookmarkWatchers []*cacheWatcher
}

Cache初始化

初始化的流程如下：

配置验证与前置检查
索引触发器初始化（支持资源索引功能）
初始化Cacher，注意这里可以看到incoming的事件管道的容量只有100
给Cacher创建watchCache与reflector
后台触发progressRequester协程定期发送watch进度更新（bookmark事件），防止连接超时，并向客户端发送最新的资源版本信息。
后台触发cacher.dispatchEvents()协程处理incoming通道中的事件并推送给WATCH客户端
后台触发wait.Until以1秒间隔执行startCaching，确保缓存持续同步

// NewCacherFromConfig creates a new Cacher responsible for servicing WATCH and LIST requests from
// its internal cache and updating its cache in the background based on the
// given configuration.
func NewCacherFromConfig(config Config) (*Cacher, error) {
    stopCh := make(chan struct{})
    obj := config.NewFunc()
    // 1. 配置验证与前置检查
    if err := runtime.CheckCodec(config.Codec, obj); err != nil {
        return nil, fmt.Errorf("storage codec doesn't seem to match given type: %v", err)
    }

    // 2. 索引触发器初始化（支持资源索引功能）
    var indexedTrigger *indexedTriggerFunc
    if config.IndexerFuncs != nil {
        // ... 索引器函数处理逻辑 ...
    }

    // Cacher结构体初始化
    cacher := &Cacher{
        resourcePrefix: config.ResourcePrefix,
        ready:          newReady(config.Clock),
        storage:        config.Storage,
        objectType:     reflect.TypeOf(obj),
        groupResource:  config.GroupResource,
        versioner:      config.Versioner,
        newFunc:        config.NewFunc,
        newListFunc:    config.NewListFunc,
        indexedTrigger: indexedTrigger,
        watcherIdx:     0,
        watchers: indexedWatchers{
            allWatchers:   make(map[namespacedName]watchersMap),
            valueWatchers: make(map[string]watchersMap),
        },
        incoming:              make(chan watchCacheEvent, 100),
        dispatchTimeoutBudget: newTimeBudget(),
        stopCh:           stopCh,
        clock:            config.Clock,
        timer:            time.NewTimer(time.Duration(0)),
        bookmarkWatchers: newTimeBucketWatchers(config.Clock, defaultBookmarkFrequency),
    }

    // 3. 缓存与同步机制初始化
    progressRequester := progress.NewConditionalProgressRequester(config.Storage.RequestWatchProgress)
    watchCache := newWatchCache(
        config.KeyFunc, cacher.processEvent, config.GetAttrsFunc, config.Versioner,
        config.Indexers, config.Clock,
    )
    listerWatcher := NewListerWatcher(config.Storage, config.ResourcePrefix, config.NewListFunc)
    reflector := cache.NewNamedReflector("storage/cacher.go:"+config.ResourcePrefix,
        listerWatcher, obj, watchCache, 0)
    reflector.WatchListPageSize = storageWatchListPageSize
    reflector.MaxInternalErrorRetryDuration = time.Second * 30

    // 4. 后台协程启动
    go cacher.dispatchEvents()
    go progressRequester.Run(stopCh)

    cacher.stopWg.Add(1)
    go func() {
        defer cacher.stopWg.Done()
        defer cacher.terminateAllWatchers()
        wait.Until(
            func() { if !cacher.isStopped() { cacher.startCaching(stopCh) } },
            time.Second, stopCh,
        )
    }()

    return cacher, nil
}

watchCache

watchCache的结构如下，这里核心是使用了一个cache []*watchCacheEvent这个循环数组来缓存历史事件。

// watchCache实现了Store接口
// 但它依赖元素实现runtime.Object接口
//
// watchCache是一个"滑动窗口"（具有有限容量），用于存储从watch中观察到的对象
type watchCache struct {
    sync.RWMutex

    // 列表等待足够新资源版本的条件变量
    cond *sync.Cond

    // 历史窗口的最大容量
    capacity int

    // 事件缓存的动态容量上限
    upperBoundCapacity int

    // 事件缓存的动态容量下限
    lowerBoundCapacity int

    // keyFunc用于为给定对象获取底层存储中的键
    keyFunc func(runtime.Object) (string, error)

    // getAttrsFunc用于获取对象的标签和字段
    getAttrsFunc func(runtime.Object) (labels.Set, fields.Set, error)

    // cache用作循环缓冲区 - 其"当前"内容存储在[start_index%capacity, end_index%capacity)范围内
    // 因此"当前"内容正好有end_index-start_index个项目
    cache      []*watchCacheEvent
    startIndex int
    endIndex   int
    // removedEventSinceRelist表示自上次重新列表以来，是否有任何事件已从`cache`循环缓冲区中删除
    removedEventSinceRelist bool

    // store用于支持从"缓存历史末尾"（即最新缓存的watch事件之后的时刻）开始的LIST操作
    // 这对于允许客户端从"现在"开始watch是必要的
    // 注意：我们假设<store>是线程安全的
    store storeIndexer

    // watchCache传播到的资源版本
    resourceVersion uint64

    // 最后一次列表结果的资源版本（通过Replace()方法填充）
    listResourceVersion uint64

    // 此处理程序在每次成功的Replace()方法结束时运行
    onReplace func()

    // 此处理程序在每次Add/Update/Delete方法结束时运行
    // 此外还获取对象的先前值
    eventHandler func(*watchCacheEvent)

    // 用于测试超时
    clock clock.Clock

    // eventFreshDuration定义watch缓存将存储的最小watch历史时长
    eventFreshDuration time.Duration

    // 底层的storage.Versioner
    versioner storage.Versioner

    // cacher的组资源
    groupResource schema.GroupResource

    // 用于测试缓存间隔失效
    indexValidator indexValidator

    // 如果有请求等待watch变为最新，则请求进度通知
    waitingUntilFresh *progress.ConditionalProgressRequester

    // 存储orderedLister的先前快照，以允许从先前的修订版本提供请求
    snapshots Snapshotter
}

此外还提供了Add、Update、Delete接口来给reflector暴露更改的接口，注意这里的函数只是进行了简单的包装，即将事件类型还有obj包装成了watch.Event，然后就使用了processEvent来处理。

// Add takes runtime.Object as an argument.
func (w *watchCache) Add(obj interface{}) error {
    object, resourceVersion, err := w.objectToVersionedRuntimeObject(obj)
    if err != nil {
       return err
    }
    event := watch.Event{Type: watch.Added, Object: object}

    f := func(elem *storeElement) error { return w.store.Add(elem) }
    return w.processEvent(event, resourceVersion, f)
}

// Update takes runtime.Object as an argument.
func (w *watchCache) Update(obj interface{}) error {
    object, resourceVersion, err := w.objectToVersionedRuntimeObject(obj)
    if err != nil {
       return err
    }
    event := watch.Event{Type: watch.Modified, Object: object}

    f := func(elem *storeElement) error { return w.store.Update(elem) }
    return w.processEvent(event, resourceVersion, f)
}

// Delete takes runtime.Object as an argument.
func (w *watchCache) Delete(obj interface{}) error {
    object, resourceVersion, err := w.objectToVersionedRuntimeObject(obj)
    if err != nil {
       return err
    }
    event := watch.Event{Type: watch.Deleted, Object: object}

    f := func(elem *storeElement) error { return w.store.Delete(elem) }
    return w.processEvent(event, resourceVersion, f)
}

watchCache.processEvent()

其流程如下：

首先在watch.Event的基础上添加更多的信息，诸如Fields、resourceVersion、RecordTime等，此外如果之前就有，那么也会获取到previous，最终组成watchCacheEvent。

// processEvent is safe as long as there is at most one call to it in flight
// at any point in time.
func (w *watchCache) processEvent(event watch.Event, resourceVersion uint64, updateFunc func(*storeElement) error) error {
    metrics.EventsReceivedCounter.WithLabelValues(w.groupResource.String()).Inc()

    key, err := w.keyFunc(event.Object)
    if err != nil {
       return fmt.Errorf("couldn't compute key: %v", err)
    }
    elem := &storeElement{Key: key, Object: event.Object}
    elem.Labels, elem.Fields, err = w.getAttrsFunc(event.Object)
    if err != nil {
       return err
    }

    wcEvent := &watchCacheEvent{
       Type:            event.Type,
       Object:          elem.Object,
       ObjLabels:       elem.Labels,
       ObjFields:       elem.Fields,
       Key:             key,
       ResourceVersion: resourceVersion,
       RecordTime:      w.clock.Now(),
    }

    // We can call w.store.Get() outside of a critical section,
    // because the w.store itself is thread-safe and the only
    // place where w.store is modified is below (via updateFunc)
    // and these calls are serialized because reflector is processing
    // events one-by-one.
    previous, exists, err := w.store.Get(elem)
    if err != nil {
       return err
    }
    if exists {
       previousElem := previous.(*storeElement)
       wcEvent.PrevObject = previousElem.Object
       wcEvent.PrevObjLabels = previousElem.Labels
       wcEvent.PrevObjFields = previousElem.Fields
    }

    if err := func() error {
       w.Lock()
       defer w.Unlock()

       w.updateCache(wcEvent)
       w.resourceVersion = resourceVersion
       defer w.cond.Broadcast()

       err := updateFunc(elem)
       if err != nil {
          return err
       }
       if w.snapshots != nil {
          if orderedLister, ordered := w.store.(orderedLister); ordered {
             if w.isCacheFullLocked() {
                oldestRV := w.cache[w.startIndex%w.capacity].ResourceVersion
                w.snapshots.RemoveLess(oldestRV)
             }
             w.snapshots.Add(w.resourceVersion, orderedLister)
          }
       }
       return err
    }(); err != nil {
       return err
    }

    // Avoid calling event handler under lock.
    // This is safe as long as there is at most one call to Add/Update/Delete and
    // UpdateResourceVersion in flight at any point in time, which is true now,
    // because reflector calls them synchronously from its main thread.
    if w.eventHandler != nil {
       w.eventHandler(wcEvent)
    }
    metrics.RecordResourceVersion(w.groupResource.String(), resourceVersion)
    return nil
}

`cacher.dispatchEvents()`

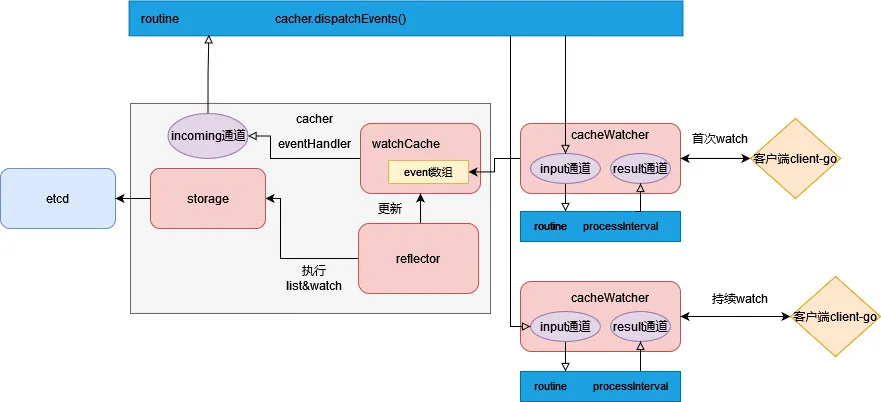

该方法实现了事件分发的主循环，处理来自底层存储的资源变更事件，并定期生成书签事件以维持watch连接活性，是API服务器缓存系统向客户端推送实时更新的关键组件。

bookmarkTimer每s进行一次，但是为了避免过高的并发有0.25比例的随机扰动。
事件处理的主循环处理三种事件源：
- 从incoming通道接收存储层事件（Added、Modified、Deleted、Bookmark、Error），然后将非BOOKMARK的事件（这类事件很频繁，亚秒级）进行分发，然后更新最后处理的资源版本lastProcessedResourceVersion
- 从bookmarkTimer定时器收到的事件，给cacher.version推送一个Bookmark事件的更新并附带最后处理的资源版本lastProcessedResourceVersion，从而让cacher.version更新这个object记录的ResourceVersion。
- 从stopCh收到事件执行优雅退出

func (c *Cacher) dispatchEvents() {
    // Jitter to help level out any aggregate load.
    bookmarkTimer := c.clock.NewTimer(wait.Jitter(time.Second, 0.25))
    defer bookmarkTimer.Stop()

    // The internal informer populates the RV as soon as it conducts
    // The first successful sync with the underlying store.
    // The cache must wait until this first sync is completed to be deemed ready.
    // Since we cannot send a bookmark when the lastProcessedResourceVersion is 0,
    // we poll aggressively for the first list RV before entering the dispatch loop.
    lastProcessedResourceVersion := uint64(0)
    if err := wait.PollUntilContextCancel(wait.ContextForChannel(c.stopCh), 10*time.Millisecond, true, func(_ context.Context) (bool, error) {
       if rv := c.watchCache.getListResourceVersion(); rv != 0 {
          lastProcessedResourceVersion = rv
          return true, nil
       }
       return false, nil
    }); err != nil {
       // given the function above never returns error,
       // the non-empty error means that the stopCh was closed
       return
    }
    for {
       select {
       case event, ok := <-c.incoming:
          if !ok {
             return
          }
          // Don't dispatch bookmarks coming from the storage layer.
          // They can be very frequent (even to the level of subseconds)
          // to allow efficient watch resumption on kube-apiserver restarts,
          // and propagating them down may overload the whole system.
          //
          // TODO: If at some point we decide the performance and scalability
          // footprint is acceptable, this is the place to hook them in.
          // However, we then need to check if this was called as a result
          // of a bookmark event or regular Add/Update/Delete operation by
          // checking if resourceVersion here has changed.
          if event.Type != watch.Bookmark {
             c.dispatchEvent(&event)
          }
          lastProcessedResourceVersion = event.ResourceVersion
          metrics.EventsCounter.WithLabelValues(c.groupResource.String()).Inc()
       case <-bookmarkTimer.C():
          bookmarkTimer.Reset(wait.Jitter(time.Second, 0.25))
          bookmarkEvent := &watchCacheEvent{
             Type:            watch.Bookmark,
             Object:          c.newFunc(),
             ResourceVersion: lastProcessedResourceVersion,
          }
          if err := c.versioner.UpdateObject(bookmarkEvent.Object, bookmarkEvent.ResourceVersion); err != nil {
             klog.Errorf("failure to set resourceVersion to %d on bookmark event %+v", bookmarkEvent.ResourceVersion, bookmarkEvent.Object)
             continue
          }
          c.dispatchEvent(bookmarkEvent)
       case <-c.stopCh:
          return
       }
    }
}

cacher.dispatchEvent()

首先通过startDispatching构建watchBuffer
如果分发的事件是Bookmark：
- 给watchBuffer中的每个watcher通过nonblockingAdd添加，其会判断是否 event.ResourceVersion >= c.bookmarkAfterResourceVersion，只有是才会加入到cacher.input中。
如果是其他普通的事件：
- 对每个watcher调用nonblockingAdd，成功则事件入队，失败则加入blockedWatchers列表
- 如果blockedWatchers列表有时事件则：
  - 超时预算管理：从dispatchTimeoutBudget获取可用超时时间，避免单个事件占用过多资源
  - 带超时的阻塞分发：调用watcher.add并传入计时器，允许在超时前等待watcher处理
  - 智能计时器复用：如果计时器触发则设为nil，避免后续watcher使用已过期的计时器
  - 资源回收：返回未使用的超时时间到预算池，实现整体资源调控

func (c *Cacher) dispatchEvent(event *watchCacheEvent) {
    c.startDispatching(event)
    defer c.finishDispatching()
    // Watchers stopped after startDispatching will be delayed to finishDispatching,

    // Since add() can block, we explicitly add when cacher is unlocked.
    // Dispatching event in nonblocking way first, which make faster watchers
    // not be blocked by slower ones.
    //
    // Note: if we ever decide to cache the serialization of bookmark events,
    // we will also need to modify the watchEncoder encoder
    if event.Type == watch.Bookmark {
       for _, watcher := range c.watchersBuffer {
          watcher.nonblockingAdd(event)
       }
    } else {
       // Set up caching of object serializations only for dispatching this event.
       //
       // Storing serializations in memory would result in increased memory usage,
       // but it would help for caching encodings for watches started from old
       // versions. However, we still don't have a convincing data that the gain
       // from it justifies increased memory usage, so for now we drop the cached
       // serializations after dispatching this event.
       //
       // Given that CachingObject is just wrapping the object and not perfoming
       // deep-copying (until some field is explicitly being modified), we create
       // it unconditionally to ensure safety and reduce deep-copying.
       //
       // Make a shallow copy to allow overwriting Object and PrevObject.
       wcEvent := *event
       setCachingObjects(&wcEvent, c.versioner)
       event = &wcEvent

       c.blockedWatchers = c.blockedWatchers[:0]
       for _, watcher := range c.watchersBuffer {
          if !watcher.nonblockingAdd(event) {
             c.blockedWatchers = append(c.blockedWatchers, watcher)
          }
       }

       if len(c.blockedWatchers) > 0 {
          // dispatchEvent is called very often, so arrange
          // to reuse timers instead of constantly allocating.
          startTime := time.Now()
          timeout := c.dispatchTimeoutBudget.takeAvailable()
          c.timer.Reset(timeout)

          // Send event to all blocked watchers. As long as timer is running,
          // `add` will wait for the watcher to unblock. After timeout,
          // `add` will not wait, but immediately close a still blocked watcher.
          // Hence, every watcher gets the chance to unblock itself while timer
          // is running, not only the first ones in the list.
          timer := c.timer
          for _, watcher := range c.blockedWatchers {
             if !watcher.add(event, timer) {
                // fired, clean the timer by set it to nil.
                timer = nil
             }
          }

          // Stop the timer if it is not fired
          if timer != nil && !timer.Stop() {
             // Consume triggered (but not yet received) timer event
             // so that future reuse does not get a spurious timeout.
             <-timer.C
          }

          c.dispatchTimeoutBudget.returnUnused(timeout - time.Since(startTime))
       }
    }
}

func (c *cacheWatcher) nonblockingAdd(event *watchCacheEvent) bool {
    // if the bookmarkAfterResourceVersion hasn't been seen
    // we will try to deliver a bookmark event every second.
    // the following check will discard a bookmark event
    // if it is < than the bookmarkAfterResourceVersion
    // so that we don't pollute the input channel
    if event.Type == watch.Bookmark && event.ResourceVersion < c.bookmarkAfterResourceVersion {
       return false
    }
    select {
    case c.input <- event:
       c.markBookmarkAfterRvAsReceived(event)
       return true
    default:
       return false
    }
}

k8s > ApiServer

#k8s

【k8s APIServer 源码阅读（一）】-对象缓存

http://example.com/2025/08/24/k8s APIServer源码阅读【一】-对象缓存/

作者

滑滑蛋

发布于

2025年8月24日

许可协议

【k8s kubelet 源代码阅读（二）】-节点状态上报下一篇
